Assembly joints

The assembly joints is designed to gacilitate assembly and disassembly of pipeline fittingd and compensation of length inaccuracie during the pipeline assembly. The adjustable construction length can be set with distance bolts.

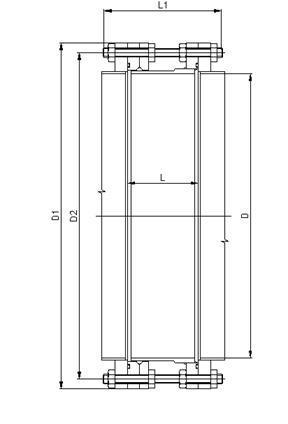

montazni vlozky vykres  montazni vlozky

PARAMETERS:

  • Nominal inside diameter: DN 100 – 2800
  • Nominal pressure: PN 2,5 – 63
  • Connecting dimensions: dle EN 1092–1, příruba typ 21, tvar A

assembly joints
assembly joints 1
assembly 3

assembly 4
